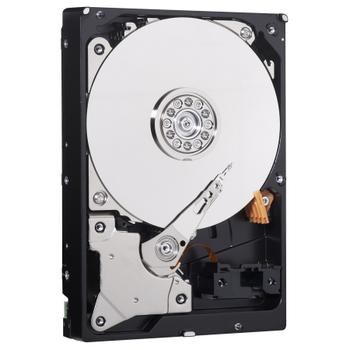

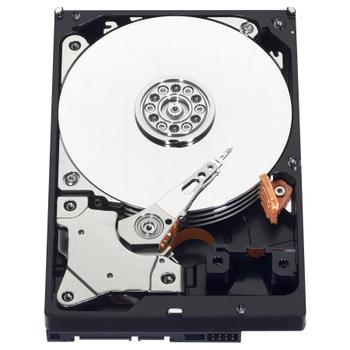

Name: WESTERN DIGITAL - WD CaviarBlue 1TB SATA6Gb/s 7200RPM 64mb cache
Brand: WESTERN DIGITAL
SKU: 4895259
Availability: PreOrder

WESTERN DIGITAL WD CaviarBlue 1TB SATA6Gb/s 7200RPM 64mb cache

Artikelnr:

WD10EZEX

EAN:

0718037779911

Gränssnitt Serial ATA III
Överföringshastighet 6GB/s
Kapacitet 1TB
Rotationshastighet 7200RPM
Storlek 3.5"

WD Blue

The original.
WD Blue drives are designed and manufactured with the proven technology found in WD’s original award-winning desktop and mobile hard drives.

WD quality.
Built to the highest standards of quality and reliability, these drives offer the features and capacity ideal for your everyday computing needs.

More options.
These drives are available in a broad range of capacities, cache sizes, form factors and interfaces so you can be sure there’s a drive that’s the perfect fit for your system, in more ways than one.

WD Caviar Blue 1 TB SATA Hard Drives ( WD10EZEX)

Product Specifications
	Interface	SATA 6 Gb/s

Performance Specifications
	Rotational Speed	7,200 RPM (nominal)
	Buffer Size	64 MB
	Load/unload Cycles	300,000 minimum

Transfer Rates
	Transfer Rate (Buffer To Disk)	150 MB/s (Sustained)

Physical Specifications
	Formatted Capacity	1,000,204 MB
	Capacity	1 TB
	User Sectors Per Drive	1,953,525,169

Physical Dimensions
English
	Height	1.028 Inches
	Depth	5.787 Inches
	Width	4.00 Inches
	Weight	0.97 Pounds

Metric
	Height	26.1 mm
	Depth	147 mm
	Width	101.6 mm
	Weight	0.44 kg

Environmental Specifications
Shock
	Operating Shock (Read)	30G, 2 ms
	Non-operating Shock	350G, 2 ms

Acoustics
	Idle Mode	29 dBA (average)
	Seek Mode 0	30 dBA (average)

Temperature (English)
	Operating	32° F to 140° F
	Non-operating	-40° F to 158° F

Temperature (Metric)
	Operating	-0° C to 60° C
	Non-operating	-40° C to 70° C

Electrical Specifications
Current Requirements
	Power Dissipation
	Read/Write	6.80 Watts
	Idle	6.10 Watts
	Standby	1.20 Watts
	Sleep	1.20 Watts

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Relaterade produkter

Egenskaper
Hårddisk storlek	3.5"
Hårddiskkapacitet	1000 GB
Hårddisk rotationshastighet	7200 RPM
Gränssnitt	Serial ATA III
Modell	HDD
Komponent för	PC
Datalagringsenhetens buffertstorlek	64 MB
Överföringshastighet	6 Gbit/s
Bibehållen överföringshastighet	150 MiB/s
Start och stopp cykel	300000
RoHS-efterlevnad	Ja
Strömtillförsel
Strömförbrukning i vänteläge	1,2 W
Strömförbrukning (läsning)	6,8 W
Strömförbrukning (skrivning)	6,8 W
Strömförbrukning (viloläge)	6,1 W
Driftspänning	5 / 12 V
Miljökrav
Temperatur vid drift	0 - 60 ° C
Temperaturintervall (förvaring)	-40 - 70 ° C
Stötar vid drift	30 G
Stötar i avstängt läge	350 G
Vikt & dimension
Bredd	101,6 mm
Höjd	25,4 mm
Djup	147 mm
Vikt	450 g
Förpackning
Adapter för lagringsenhet inkluderad	Nej
Antal	1
